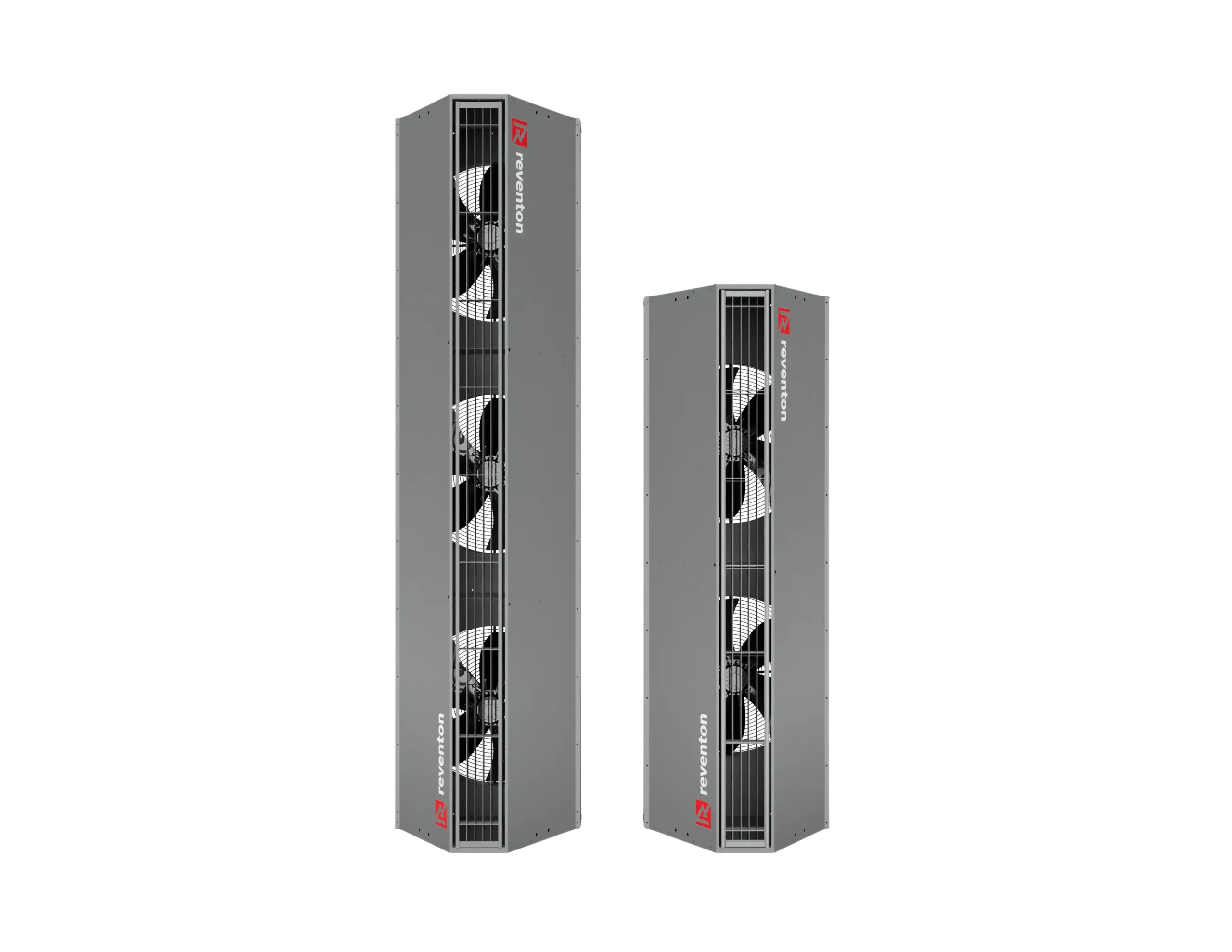

Air curtain HUMMER
The HUMMER air curtain has been designed for industrial doors and gates, especially in warehouses, production halls and garages. It prevents heat loss in winter and protects against the inflow of hot air, dust and insects in summer.
About the product
HUMMER in the cold version (without air heating) is an industrial air curtain dedicated to doors and gates in warehouses, production halls and garages. It has no heat exchanger — its purpose is to create an effective air barrier limiting HVAC system energy losses while maintaining indoor comfort.
The curtain prevents heat loss in winter and protects against the inflow of warm air, dust and insects in summer. The axial fans provide a maximum airflow of 10 100 or 14 500 m³/h (depending on the model), and the airstream with a reach of up to 8 m works particularly well with wide and tall gates.

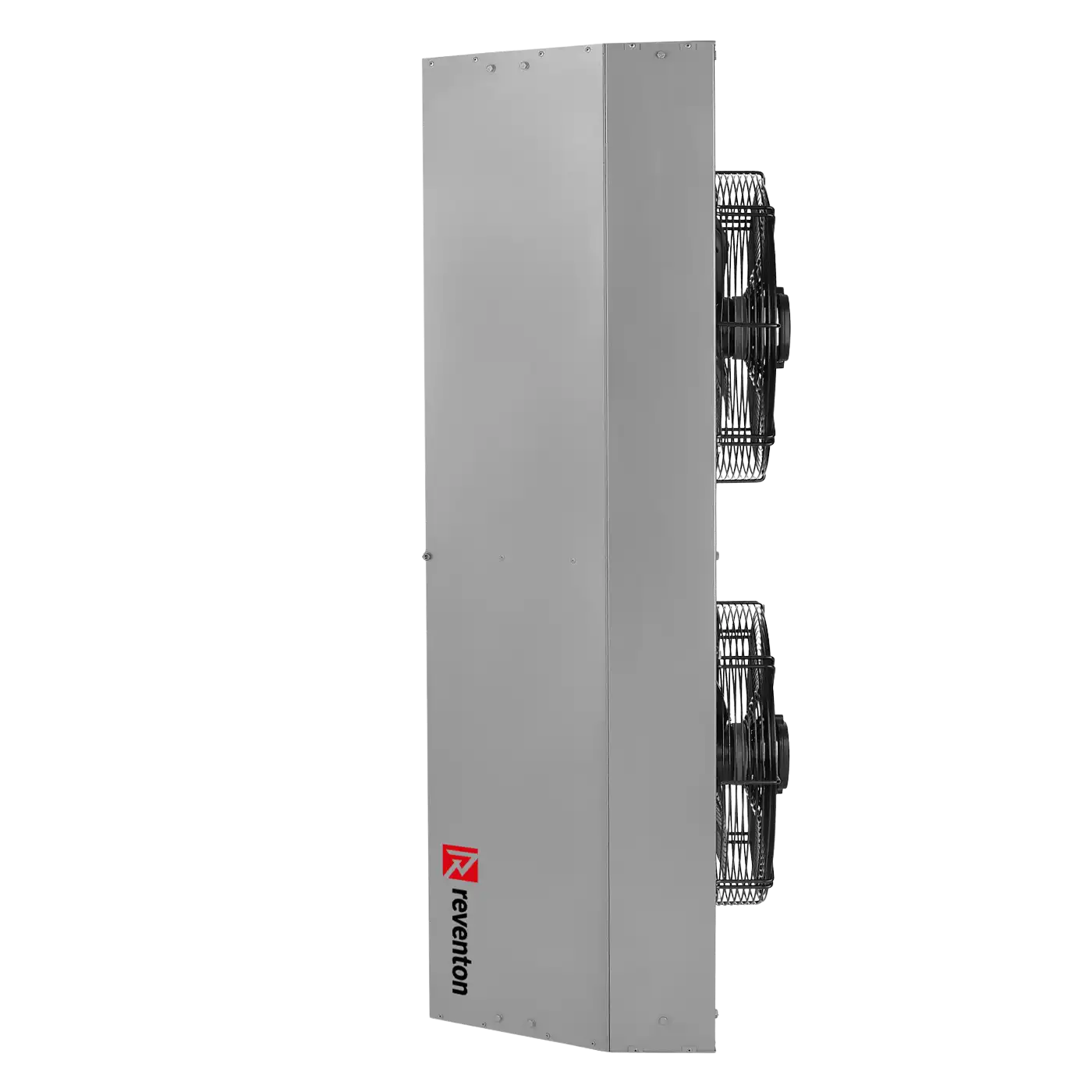

The powder-coated galvanised steel housing provides resistance to corrosion and mechanical damage, while the energy-efficient EC motor with smooth 0–100% control has IP54 protection. The modular design and included mounting kit allow horizontal or vertical installation, and several units can be connected into a single system for wider openings. The adjustable supply grille and the possibility of BMS integration complete the unit’s functionality.
Key features
- Version without air heating (cold)
- Maximum airflow: 10 100 or 14 500 m³/h
- Effective curtain reach: up to 8 m
- Energy-efficient EC motor
- Motor with IP54 protection rating
- Durable powder-coated galvanised steel housing
- Can be installed horizontally or vertically
- Multiple units can be connected into a single system
- Supplied with a mounting kit
Technical specification HUMMER C-EC
| Product name | Product code |
Airflow [m³/h] |
Curtain reach [m] |
Motor power [W] |
Weight [kg] |
Noise level [dB] |
|---|---|---|---|---|---|---|
| HUMMER 150C-EC | ACH150C-EC-2353 | 10 100 | 7,0 | 860 | 41 | 67 |

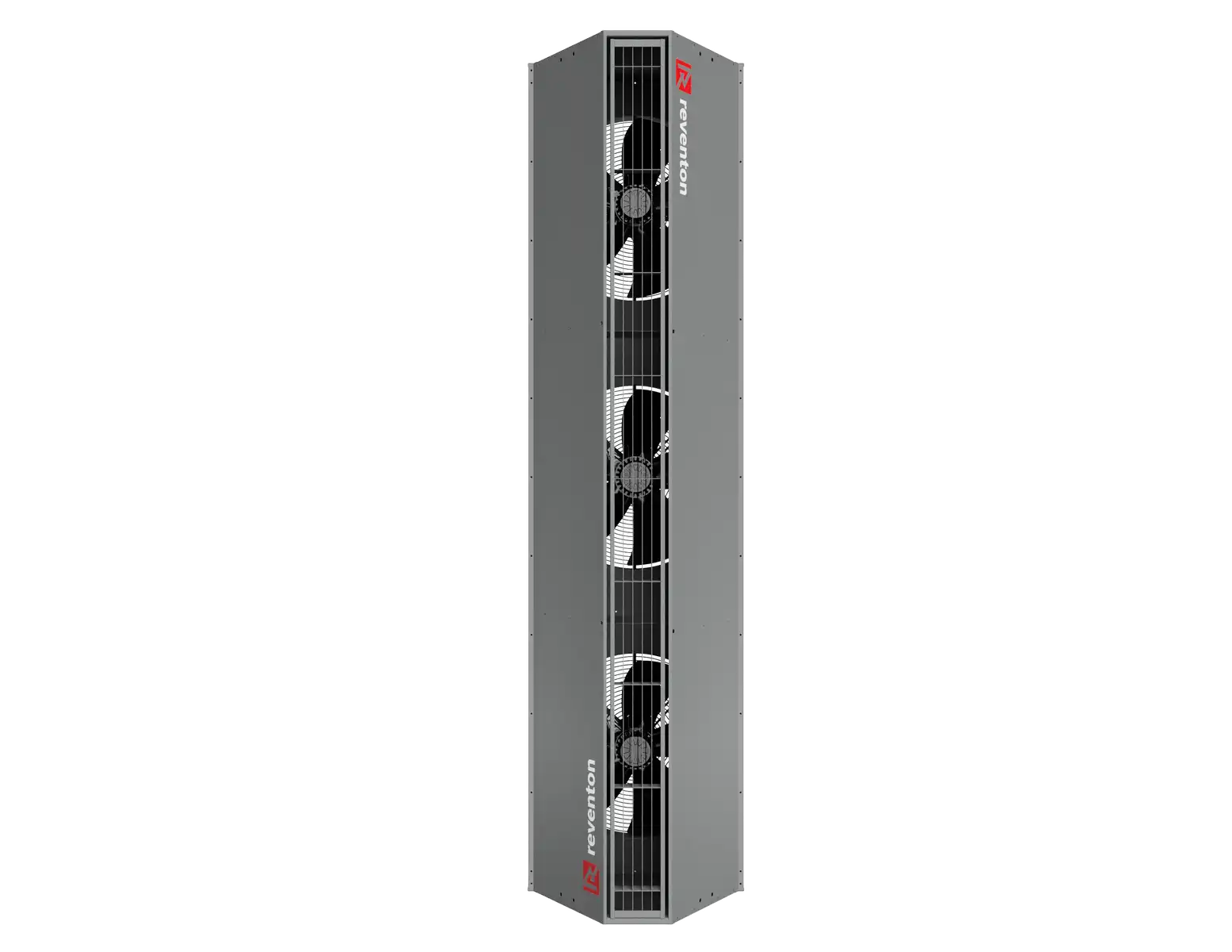

| HUMMER 200C-EC | ACH200C-EC-2354 | 14 500 | 8,0 | 1290 | 58 | 70 |
EC models are fitted with a motor with smooth 0–100% control — the values given refer to maximum speed.
