Air curtains HUMMER Series
Modern HUMMER industrial door air curtains are devices that effectively prevent the escape of valuable heat in winter and the intrusion of dust, insects and hot air in summer. They perform well in demanding industrial facilities such as warehouses, production halls, logistics centres, workshops and large-format garages. The series offers three variants: cold HUMMER C, LPHW HUMMER W and electric HUMMER E, matched to the installation available on site.
Choose a HUMMER air curtain variant
Our range includes devices matched to every type of facility and the specifics of its heating installation. Each variant can be mounted horizontally or vertically, with an AC or EC motor.

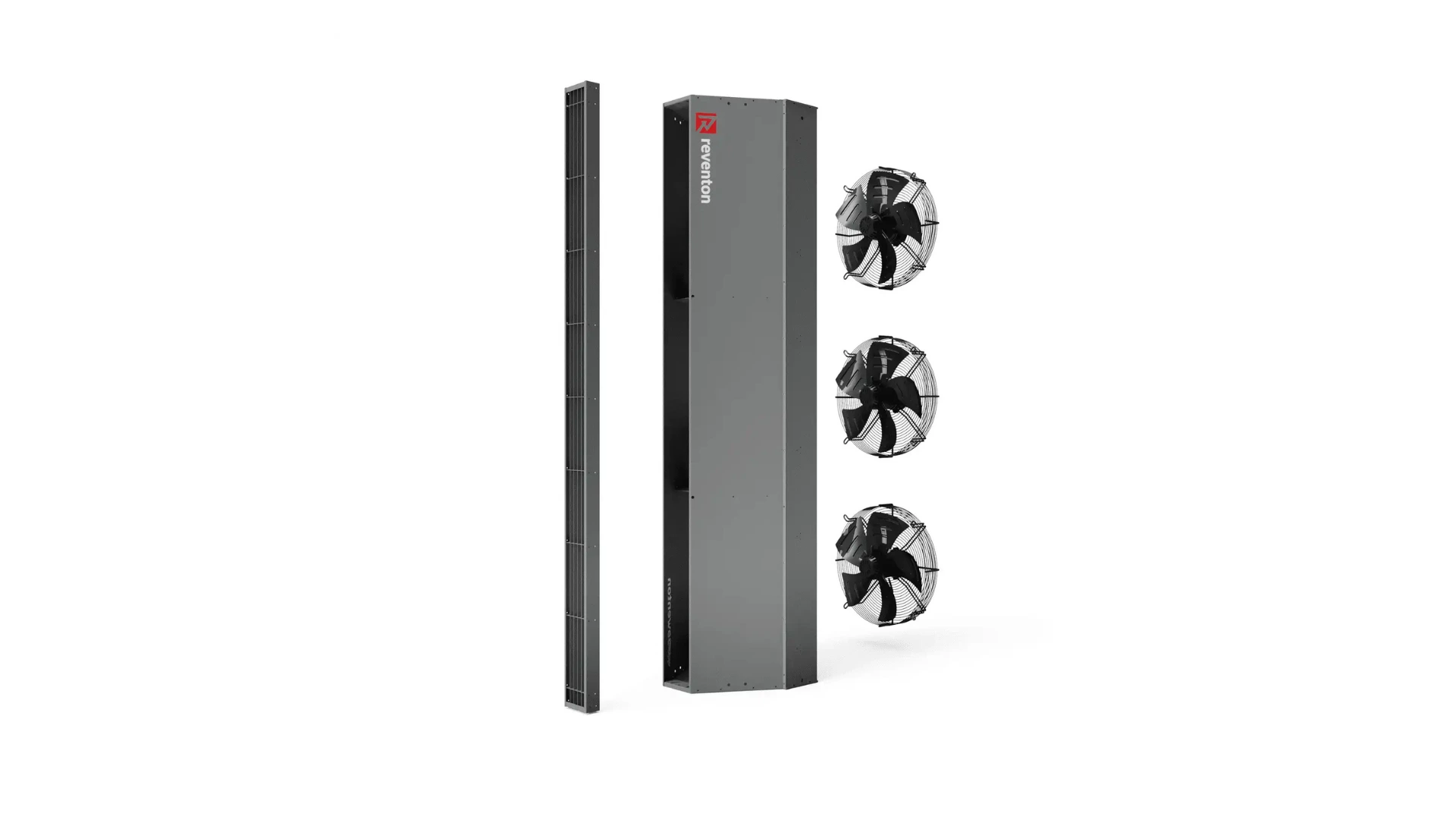

HUMMER C-EC
Cold air curtain without a heater. Acts like an extremely powerful industrial fan. An excellent choice for cold stores and warehouses — it keeps the cold in and protects against heat, insects and dust from outside.
HUMMER W-1P/EC
A classic and extremely efficient curtain with a water heat exchanger connected to the central heating system. It heats the incoming air, improving comfort for employees working near an open door. Ideal for production halls, warehouses and workshops.
3.9 to 118.5 kW
HUMMER E-3P
A model for buildings without access to a C.H. water system. Innovative PTC heaters automatically regulate the temperature, eliminating the risk of overheating. An excellent solution for facilities with a photovoltaic installation.
14 to 21 kW
Have more questions?
Need technical support? Or want to ask about trade terms? Call us or send a message!
Why choose HUMMER air curtains?
Customisation for individual orders – dimensions, RAL colours, stainless steel casing version, IP66 protection class (depending on MOQ).
Maximum airflow of up to 14,500 m³/h and an effective operating range of up to 8 m allow even the largest industrial gates to be effectively protected.
Reliable 3-stage AC motors or energy-efficient EC motors with stepless 0–100% speed control, matched to your project’s priorities.
Robust powder-coated galvanised steel casing and IP54-rated motors ensure resistance to industrial dust and splashing.
Horizontal or vertical installation is possible, as well as combining several units into one integrated system, allowing doors of any size to be protected.
HUMMER curtains — technical parameter overview
| Parameter |
HUMMER C-EC Cold |
HUMMER W-1P/EC Water-based |
HUMMER E-3P Electric |
|---|---|---|---|
| Heating element | None | Water heat exchanger | PTC heater |
| Heating capacity range | – | 3.9 to 118.5 kW | 14 to 21 kW |
| Max. airflow | 14,500 m³/h | 12,400 m³/h | 9,500 m³/h |
| Effective range | up to 8 m | up to 7.5 m | up to 7 m |
| Available motors | EC | AC 3-stage or EC | AC 3-stage |
| Motor IP rating | IP54 | IP54 | IP54 |
| Available lengths | 150 cm, 200 cm | 150 cm, 200 cm | 150 cm, 200 cm |
| Installation | Horizontal / vertical | Horizontal / vertical | Horizontal / vertical |
Which variant to choose?
HUMMER C (Cold)
Separation of climate zones without raising the temperature. Dedicated to cold stores and facilities where an effective barrier against dust and insects is required. The highest airflow capacity in the series.
HUMMER W (Water-based)
Effective heating of the entrance zone at the lowest operating costs. Requires an available central heating (C.H.) system. Recommended for production halls, warehouses and workshops with access to system hot water.
HUMMER E (Electric)
Heating of the entrance zone without the need to connect to a water system. Requires a 400 V power supply. Recommended for facilities without central heating and buildings with their own power generation (e.g. photovoltaics).
What do you gain with HUMMER series air curtains?
Protecting your money
Less escaping heat means lower heating bills. This curtain pays for itself quickly, because your profits stay in the business instead of escaping through the door.
Simple and fast installation
Installers don’t like wasting time. That’s why the HUMMER air curtain has a simple design and a ready-to-use mounting kit. You hang the unit, connect it, and you’re done.
Comfort in all conditions
Whether it’s a freezing morning at a loading dock or a scorching afternoon in a workshop, HUMMER maintains a stable indoor temperature, protecting employee health and the quality of stored goods.
Customisation for Individual Orders
We carry out every order according to the customer’s individual requirements – from dimensions, through RAL colour options, to a stainless steel version.
On request, we also offer an increased IP66 fan protection class, ensuring full protection in demanding operating conditions.
Detailed customisation terms, including the availability of individual options, depend on the order quantity (MOQ) – contact us to determine the best solution.
Blog
Knowledge base
Guides, comparisons, analyses, and opinions. Practical installation tips, product novelties, and expert articles.
See moreBIM and CAD
libraries
Professional 3D models, Revit libraries, and DWG files. Essential tools for designing modern installations.
See moreTechnical
documentation
Complete file library: O&M manuals, datasheets, hygiene certificates and declarations of conformity.
See moreProduct
catalogue
The latest Reventon Group product catalogue. A complete overview of the range broken down by category, series and model.
Download PDFFAQ
Definitely. For years, logistics facilities were dominated by standard PVC sheeting, PVC doors or traditional strip curtains. Modern air curtains are an ideal solution because they create a non-contact, highly effective air barrier. This invisible wall handles adverse weather conditions and sudden inflows of cold air with ease.
In modern industry, air curtains protect against an uncontrolled rise in heating costs, while ensuring smooth traffic flow in the hall or warehouse. Even the harshest weather conditions cannot break through the strong barrier stream.
For industrial doors of above-standard dimensions, the key issue is achieving coverage of the door's entire width or height. For this reason, two mounting variants are used for HUMMER industrial curtains:

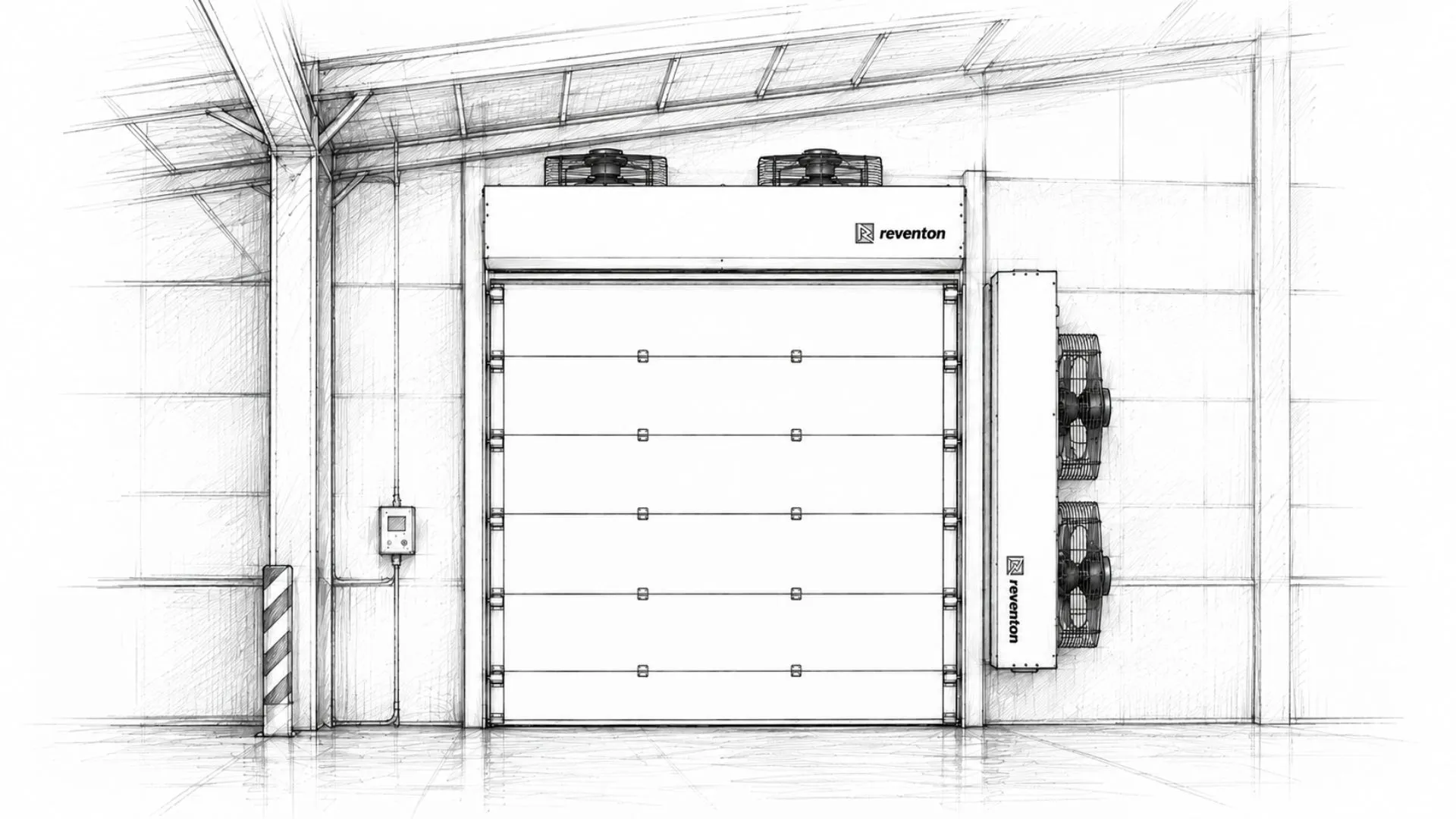

The first mounting variant is horizontal air curtains, where several units are installed in a row above the door. Keep in mind that the door height must not exceed the curtain's maximum range.
The second mounting variant, often recommended for large doors, is vertical air curtains. With vertical mounting, the units are arranged in a vertical column.
Production halls commonly use devices fitted with heating elements – usually supplied with water from the central heating system. They use a copper-aluminium heat exchanger that draws hot water from the building's heating installation to warm the passing air. Choosing models with a water heat exchanger connected to the building's heating network has a direct impact on the thermal comfort of people in the entrance zone.
This is helped by automated shut-off of the heating water supply using two-way or three-way actuated valves (which we recommend). This allows the temperature to be effectively stabilised while consuming less energy, without the risk of the company's budget being burdened with additional heating costs.
Conversely, "cold" models, which deliberately lack a heater or water heat exchanger, function solely as a barrier.
Yes. HUMMER E models use special PTC-type electric heaters. This guarantees safety without the risk of ignition. Even at low room temperature and very high supply air speeds, thermal comfort will be improved at the entrance for people entering the building.
Achieving optimal results and maximum protection at the door requires the correct adjustment of the air stream. Air louvres (or precise directional air louvres) allow the airflow to be optimally directed, with an adjustment range of up to 15°.
Yes. Although air curtains fitted with a heating element improve the comfort of people passing beneath them by heating the entrance zone, even cold models are equally effective at preventing heat from escaping the interior. Their key operating principle is space separation. When correctly installed in the right position, they create a barrier against incoming wind from outside. Using any type of curtain – whether with an electric heater or so-called cold models – is absolutely necessary in the annual balance to prevent the loss of warm air and heat losses in entrance zones.
Cold / without heat exchanger:Curtains without a heat exchanger, marked with the letter "C" in both series.
Electric: HUMMER curtains with electric heaters, marked with the letter "E".
Water-based: Curtains with a water heat exchanger connected to the central heating system. In the HUMMER series, they are marked with the letter "W".
Book a quick consultation
Don't waste time studying catalogues on your own. Leave your contact details — we'll call you back to ask about your facility's parameters and prepare a specific solution. What do you gain from a single call?
-
Calculation of the heating/cooling capacity needed for your building volume
-
Immediate confirmation of equipment availability and real delivery time
-
Selection of equipment that reduces your electricity and heating bills, not just cheap to buy
-
Direct contact with an expert who can help with installation and design questions
